Tiway

8-Position 8-Conductor (8P8C)
RJ45 Contacts coated with 50 Microns of gold
Meets or Exceeds TIA/EIA 568-B Industry Standard
568-A and 568-B Wiring Compatible
Termination: 110 Style 90 Degree Punch Down
110 Conacts are Phosphor Bronze

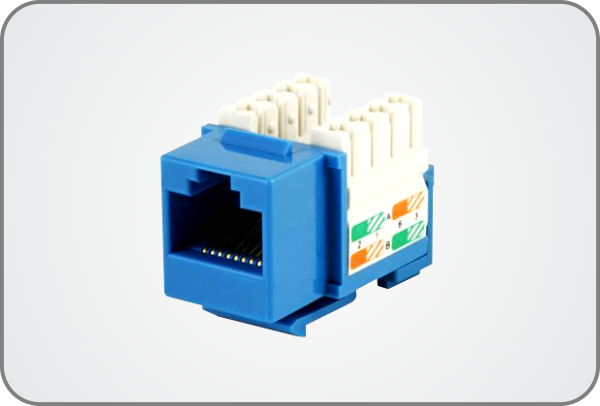

Model Number	TW-KSJ-C5e-90
Product Type	Cat5e Keystone jack
Connector	RJ-45 Female
Termination Type	110 Style 90 Degree Punch Down
Housing Material	ABS
Operating Temperatue	-10 Degree C to 60 Degree C ( - 14 Degree F to 140 Degree F )
Color	Blue / Milk white
Application	Unshielded Twisted Pair (UTP)
Wiring Scheme	T568A & T568B
Workable Wire Guage	22-26 AWG Cable
Storage Temperature	-40 Degree C to 60 Degree C ( - 14 Degree F to 140 Degree F )

Technical specifications are subject to change without prior notice for quality improvement.

Various Applications of Keystone Jacks

Jacks are available in 8 colors
making network identification
or organization a snap.

Use in standard keystone
wallplates, patch panels,
or surface mount boxes.

Ideal solution for
terminating and connecting
network cable.

Dimensions(LxWxH) :- 41.65x19.4x22.0mm

Package contains

Please check the following items before installation, if any
of the things missing mention below please contact your Supplier

keystone Jacks
Instruction Manual
